When to choose MSLA
- Aesthetic mock-ups and product presentations
- Components with fine details and precise fillets
- Technical moulds and masters for silicone
- Smooth-surfaced parts without heavy post-processing
MSLA
Masked Stereolithography
MSLA technology enables the production of ultra-high-resolution components, ideal for fine details, smooth surfaces and complex geometries. Perfect for cosmetic prototypes, engineering models and professional applications.

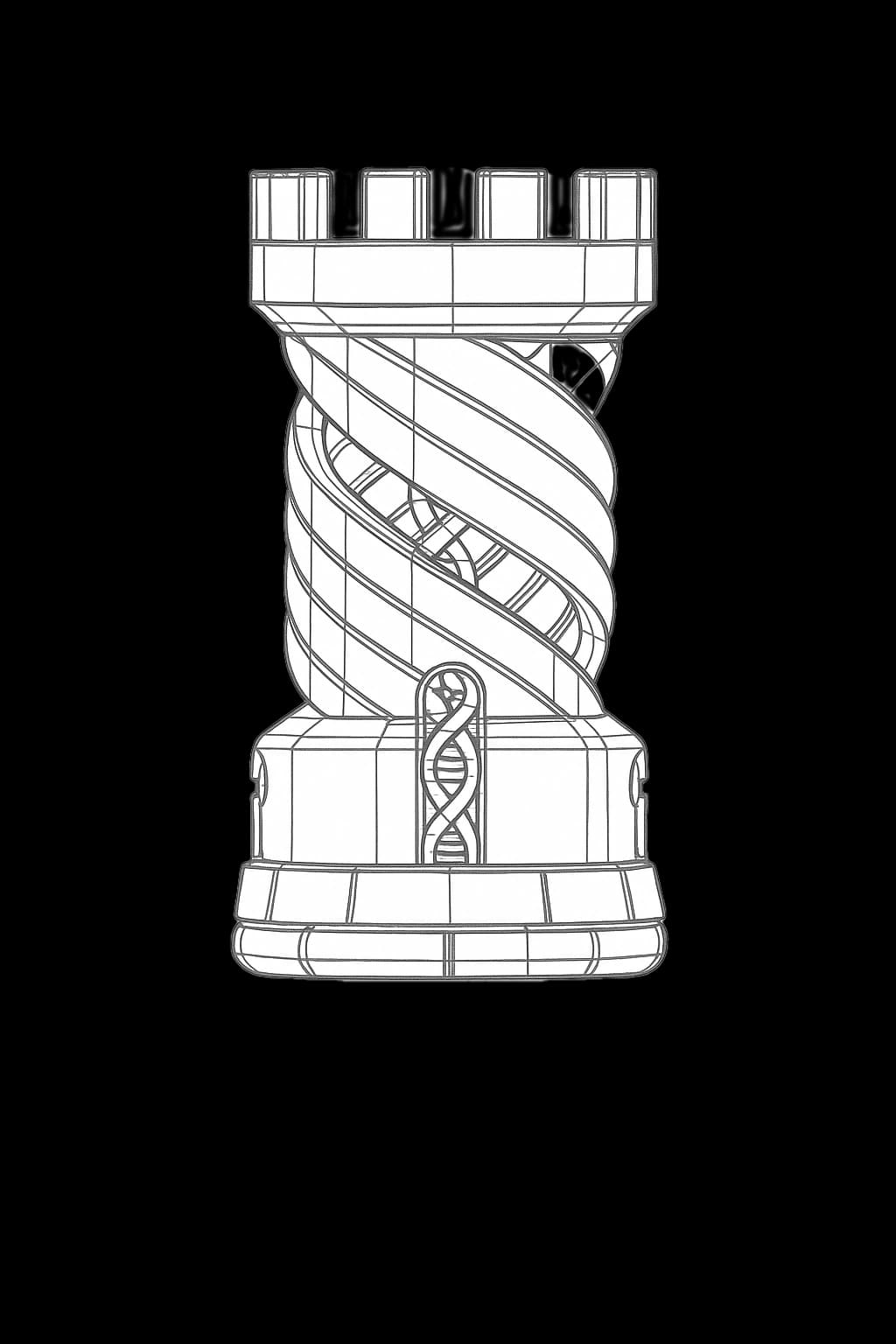

File preparation
From light
to perfect form.
Every part comes to life from a CAD model, carefully oriented and supported to optimise surface quality and dimensional accuracy. The MSLA process delivers extremely fine detail and optical-quality surfaces.
Process
Optical precision,
down to the micron.
Every layer is cured with optical precision, ensuring smooth surfaces and sharp details.
The MSLA process delivers superior cosmetic and functional quality for every application.

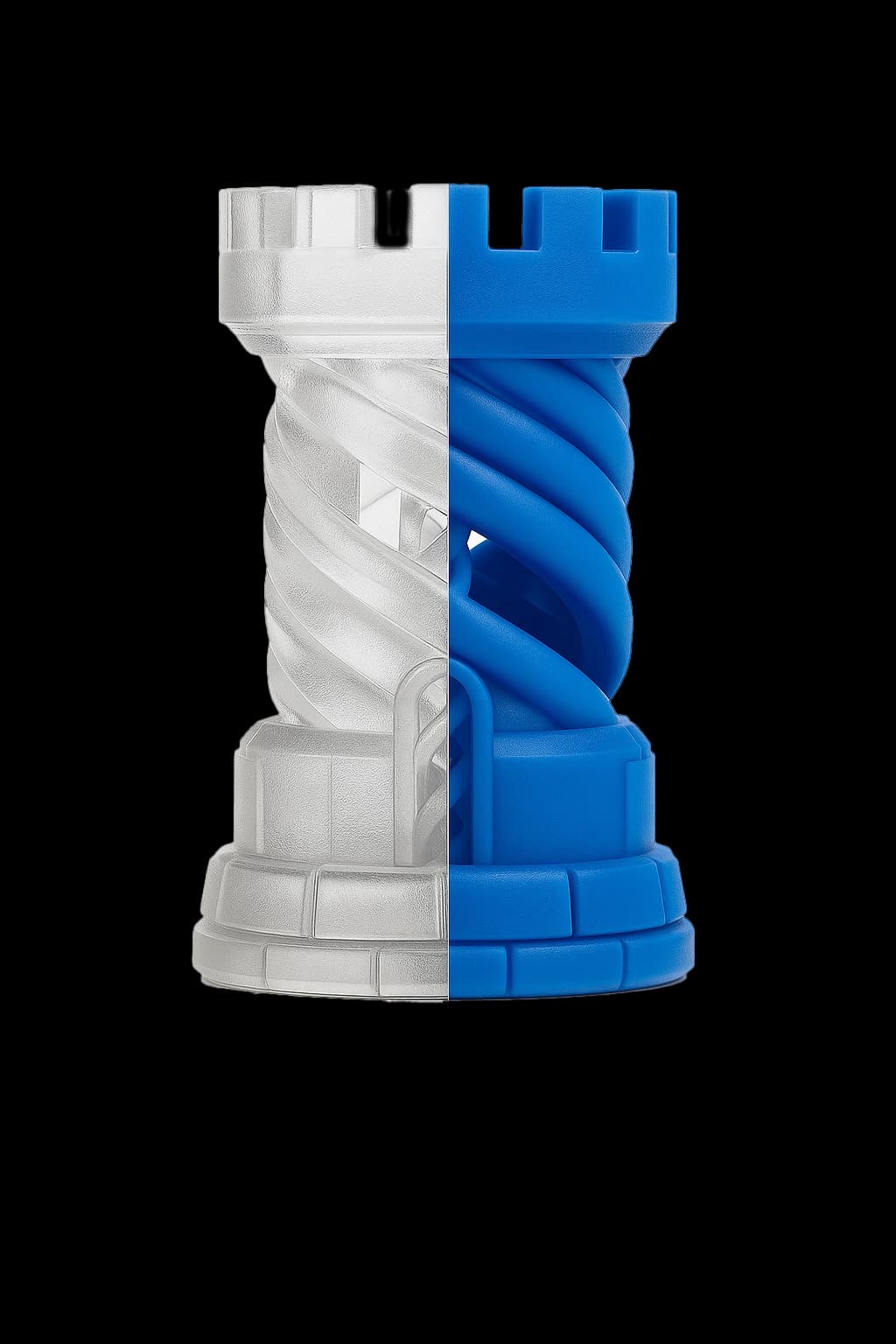

Perfect details,
right down to transparency.
25 µm
Layer resolution
Rigid 10K
High stiffness and precision
Clear Resin V5
Optically clear resin
Grey Resin V5
Precise cosmetic prototypes
Custom RAL
Coming soon

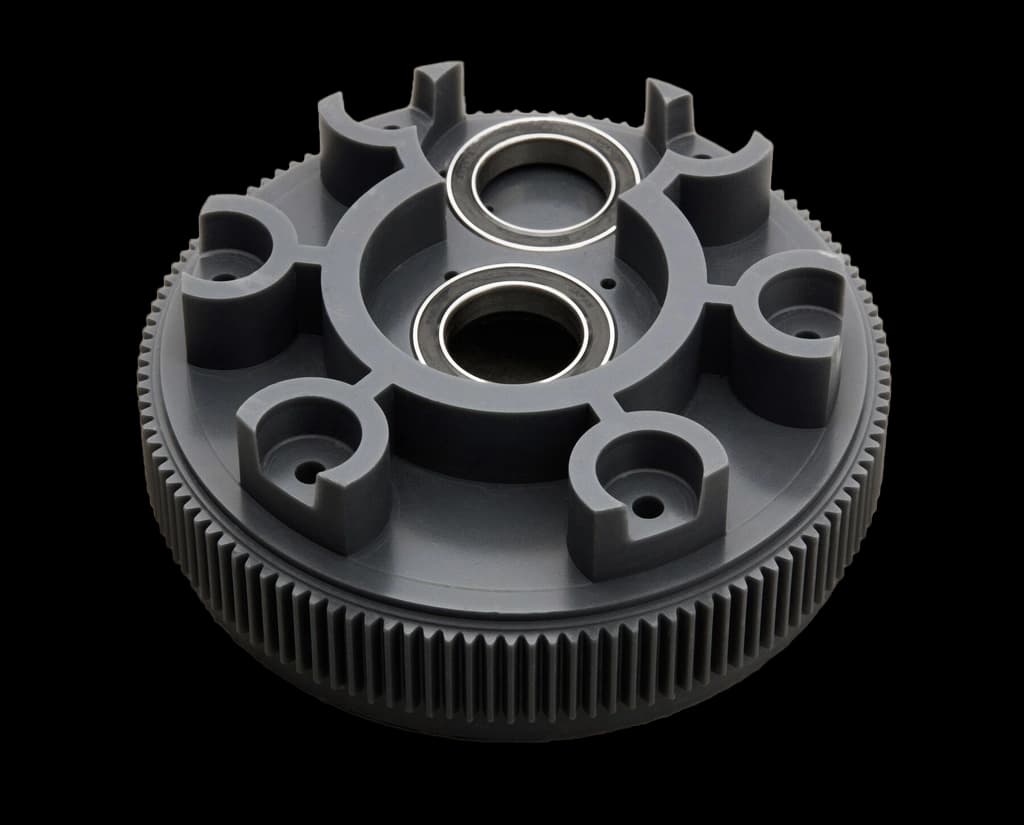

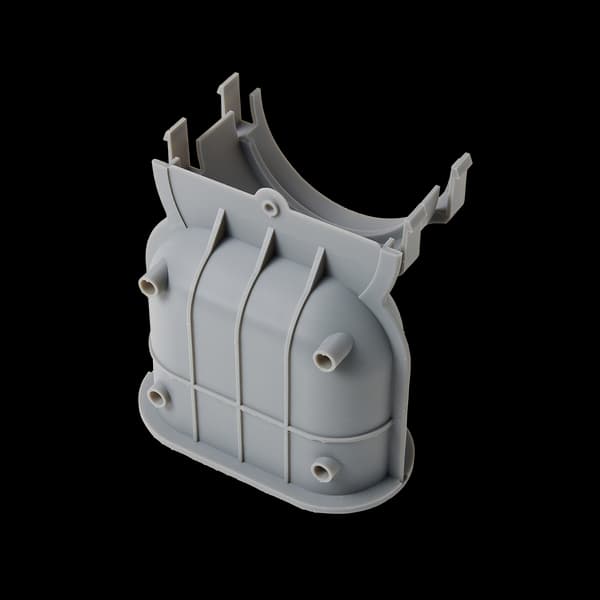

Every resin print combines precision with optical quality. MSLA technology produces flawless surfaces, ideal for cosmetic prototypes and high-fidelity functional components.
What you can do with resin.
Choose your sector: we’ll show you the applications and the right material.
Select a sector
Build volume
200 × 125 × 210 mm
Typical tolerances
± 0.2 mm
Layer height
25 – 100 μm, depending on the resin
Applications
Cosmetic prototypes, moulds, precision components
🧭 Design guide – SLA
Optimise your models for resin printing with SLA/MSLA technology. Check the key parameters for smooth surfaces, high precision and professional results.
Dimensional tolerances
± 0.1 – 0.2 mm

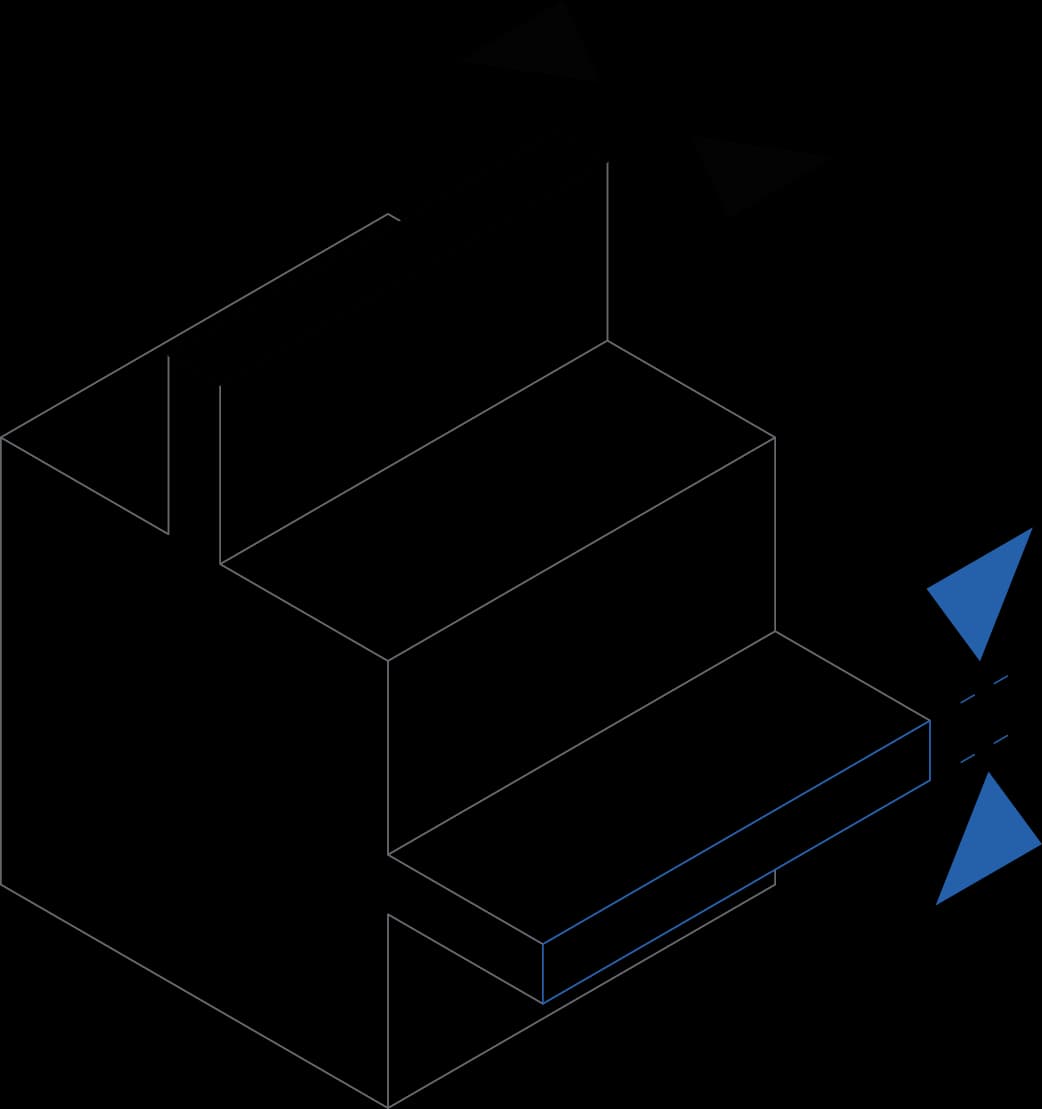

Minimum wall thickness
≥ 0.4 mm (self-supporting ≥ 0.6 mm)

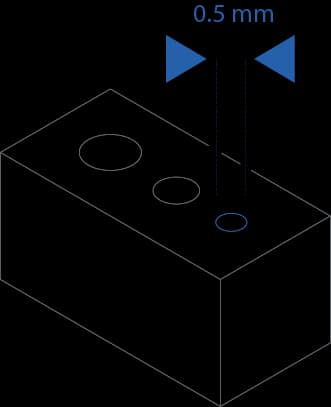

Minimum hole diameter
≥ 0.5 mm

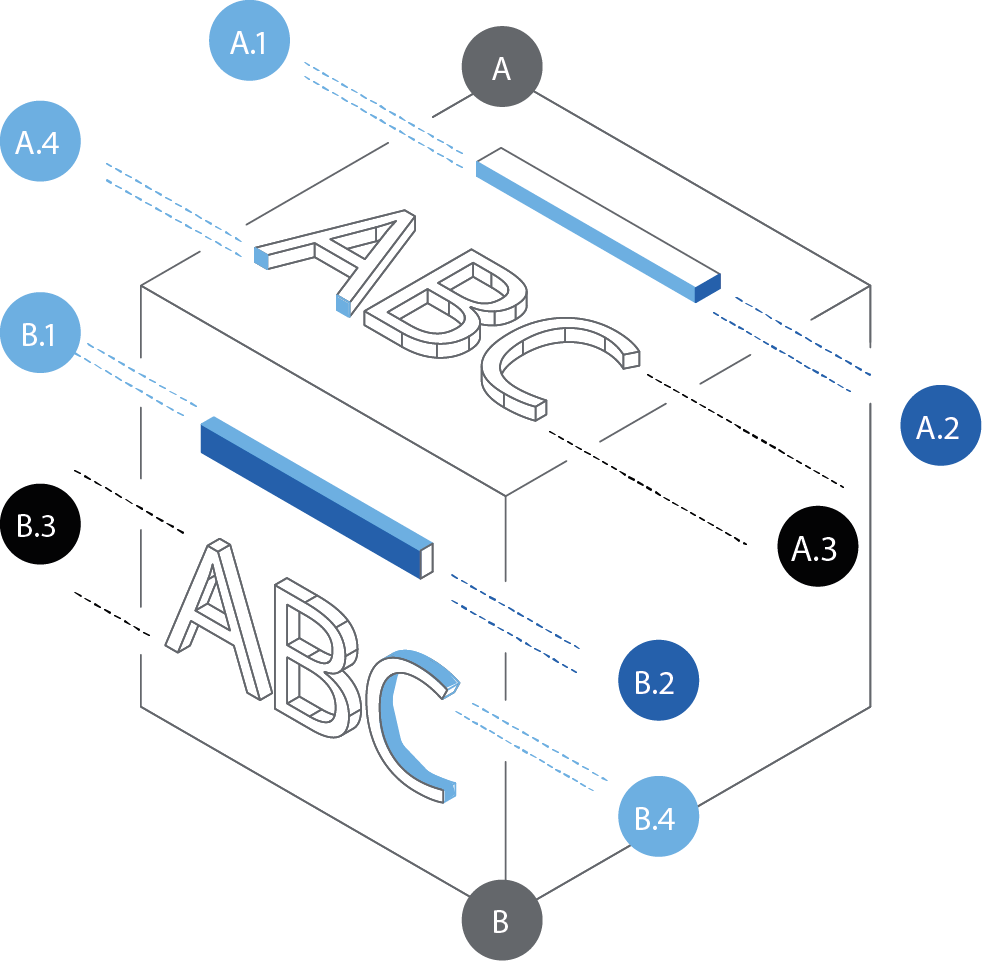

Embossed (raised) features
Minimum height: 0.15 mm • Text ≥ 3 mm

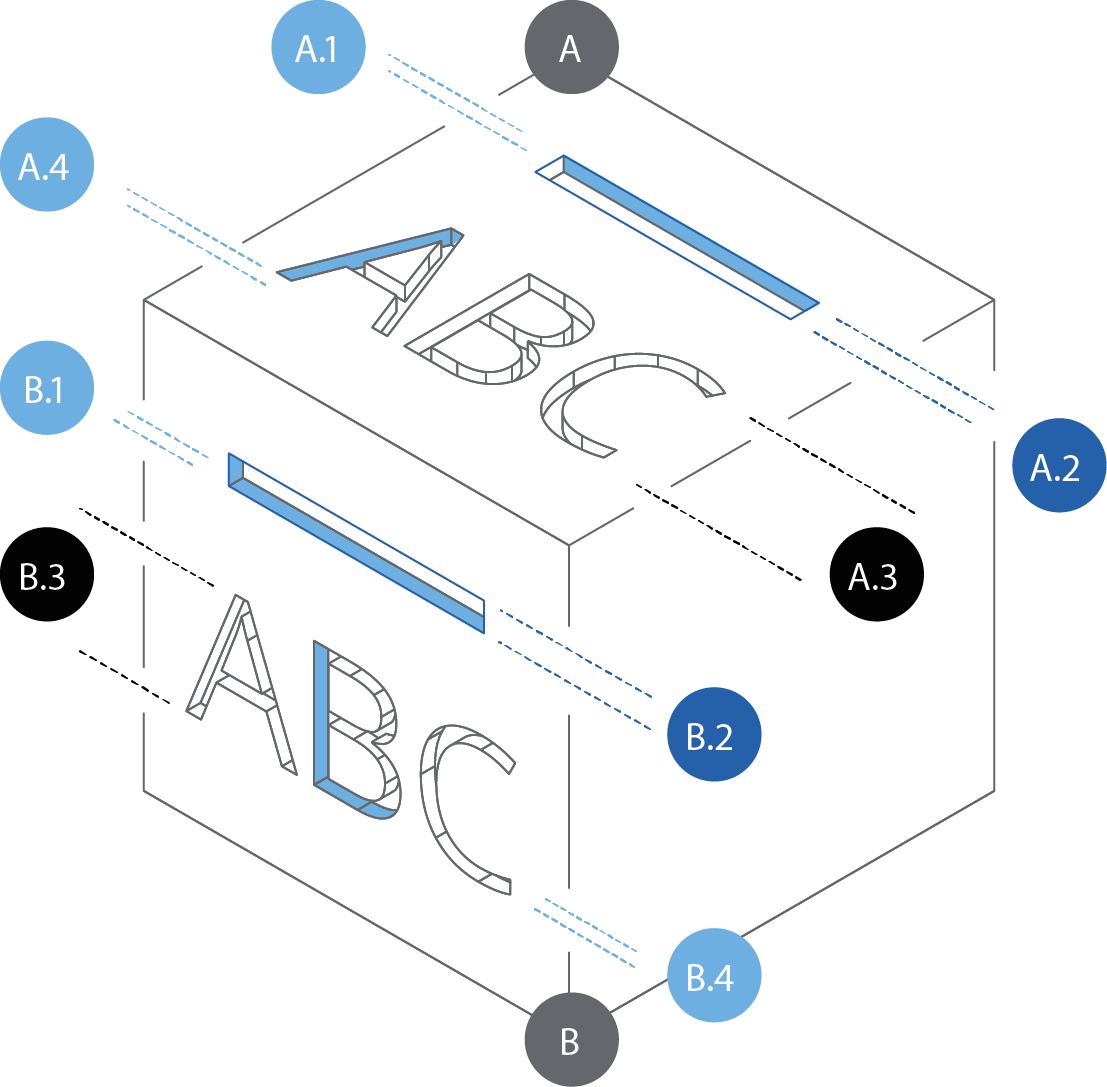

Engraved (recessed) features
Minimum depth: 0.3 mm • Text ≥ 3 mm

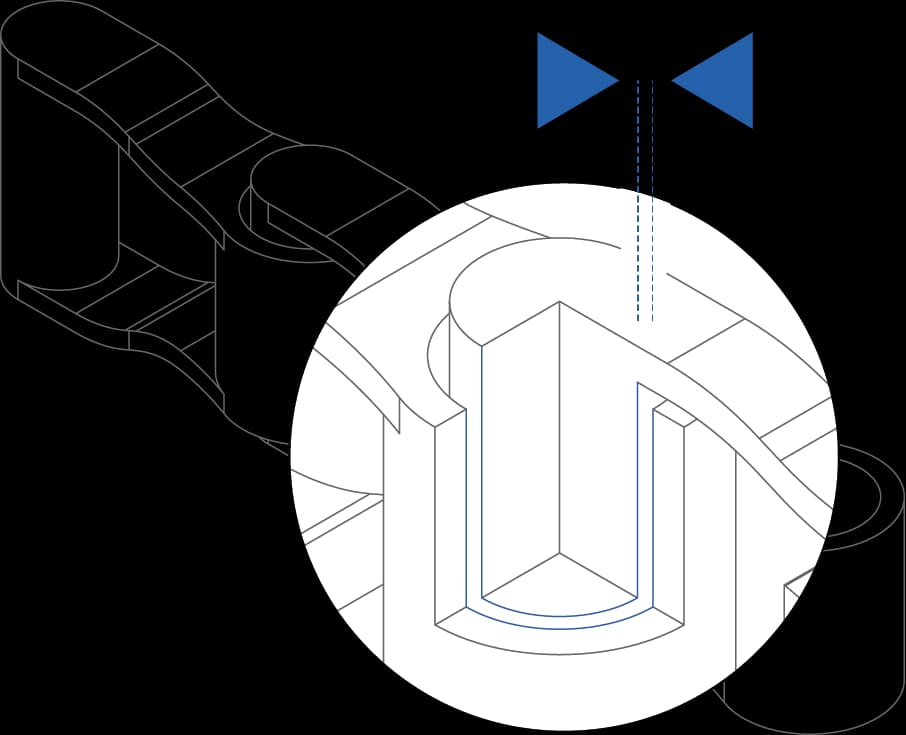

Assembly tolerances and clearances
0.1 – 0.2 mm
Note: the following guidelines are indicative only and may vary depending on the material, the part geometry and the print parameters used. For specific projects or advanced technical requirements, we recommend contacting the Doppialinea technical department for personalised advice.
MSLA quote
Calculate your quote online
High-definition resin — fine detail and finishes. Upload your file or email us for a technical review.
MSLA technology guide
MSLA 3D printing: detail, smooth surfaces and precision
MSLA (Masked Stereolithography) cures resins with high-resolution UV light. You get smooth surfaces, fine detail and tight tolerances — ideal for aesthetic prototypes, precision components and engineering models.
Doppialinea selects engineering resins according to the stiffness, temperature and flexibility your project requires.
At a glance
- Key strength
- Detail and finish
- Resins
- Standard and engineering
- Ideal for
- Prototypes · Technical jewellery
Limitations to consider
- Less suited to extreme mechanical loads than SLS
- UV exposure and temperature: assess the operating environment
- Very large geometries: FDM or SLS is often a better fit
Files and checks
- STL with a closed mesh and consistent orientation
- Minimum wall thicknesses for resin (see the guidelines on this page)
- Team support for special resins or tight tolerances
Workflow
- 1
Upload
Upload your STL in the quote tool and choose a resin.
- 2
Orientation
We optimise supports and surface quality.
- 3
MSLA printing
Curing and resin washing.
- 4
Post-processing
Support removal and the agreed finish.
